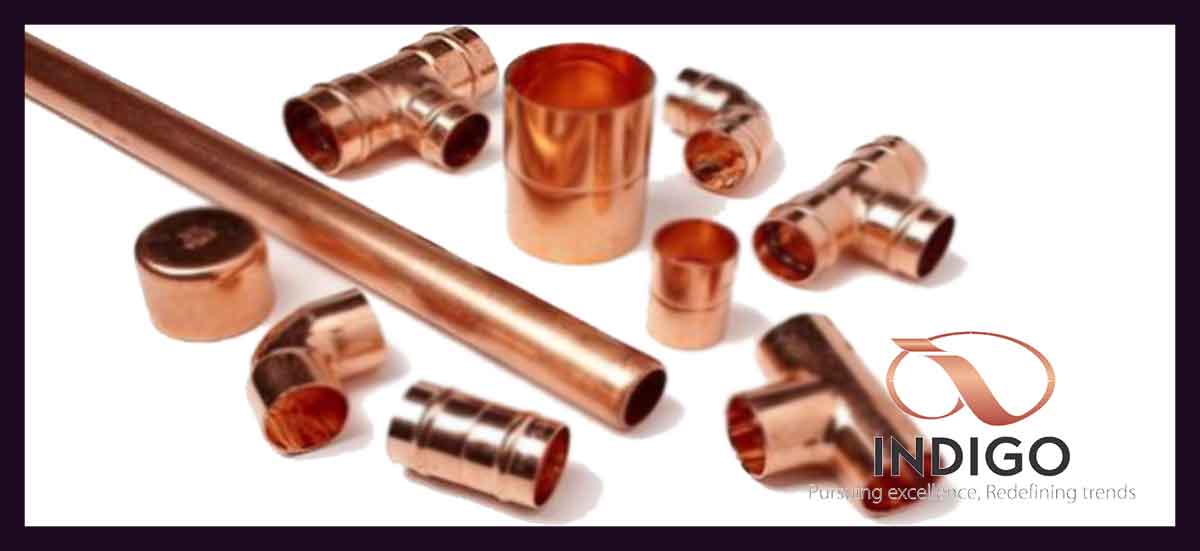

Copper Fittings For ACR, Plumbing and Gas Lines

Copper Fittings For ACR, Plumbing and Gas Lines
  • Mercure Metals and Alloys uses advanced Professional equipment to manufacture pipe fittings in accordance with relevant international & national products standards.
  • All products are manufactured conforming to relevant products standards as follows:
  • American standard ANSI/ASME B16.22-2001 and Japanese standard JISH3401.
  • European standards: European Community's standard EN1254-1, British standard BS864-2 and German standard DIN2856.

Elbows

Available in 90 and 45 angles, our elbows are perfect fitments for angular joints changing the direction of the pipe and have a close radius to fit in the tightest possible space. Many other varieties are available for specific requirements.

U-Bends

Ideal for compact applications, our U-bends are used to accommodate the return flow of the coolant, providing a 180 turn in a much smaller space. We manufacture both expanded as well as plain U-bends for condensers and evaporators.

Couplings

We offer couplings in various dimensions, which are used to connect two pipes of different diameters as well as to joint two identical size tubes together.

Tee

Tee is a fitting in the shape of a 'T' where top of it is the continuous pipe run and the vertical section is a branch connected to it. Tees offer multiple options and used in a variety of applications. We offer varieties of Tees multiple dimensions like one end having smaller diameter and cross Tees, which are used to connect four tubes or a threaded Tee when the vertical section of it has female threads

Reducer

Reducers are a type of fitting which is used to connect two copper pipes. They come in many different sizes allowing us to use one copper fitting for these copper pipe connections. The general sizes available are 1/2" x 1/4", 1/2" x 3/8", 5/8" x 1/4", 5/8" x 3/8", 5/8" x 1/2", 3/4" x 1/2", 1" x 1/2", 1" x 3/4", etc as per the client specification.

Non-Standard Fittings

Mercure Metals and Alloys also manufactures non standard custom made fittings as per client design and specifications.

Specification Table For Plumbing And Gas Lines Tubes

OD of Tube (mm) 12 15 22 28 35 42 54 67 76.1 108
Table'X' Nominal Thickness (mm) 0.6 0.7 0.9 0.9 1.2 1.2 1.2 1.2 1.5 1.5
Table'X' Maximum Working Pressure (bar) 64 59 51 41 43 35 27 19 23 17
Table 'Y' Nominal Thickness (mm) 0.8 1.0 1.0 1.2 1.5 1.5 2.0 2 2.0 2.5
Table 'Y' Maximum Working Pressure (bar) 87 87 69 55 54 45 47 36 32 29
Table'Z' Nominal Thickness (mm) 0.5 0.5 0.6 0.6 0.7 0.8 0.9 1.2 1.2 1.2
Table'Z' Maximum Working Pressure (bar) 62 51 41 32 31 29 26 20 19 17
